TWO SPECIAL TRIANGLES

Jump right to the exercises!

You should know the relationship between the lengths of the sides for two special triangles: 30°-60°-90° and 45°-45°-90° .

First, consider a 30°-60°-90° triangle.
The side opposite the 30° angle is shortest.
The hypotenuse is twice as long as the shortest side.
The remaining side (the one opposite the 60° angle) is 3 times as long as the shortest side.

It is very easy to see that these are the correct relationships between the lengths of the sides, as follows:

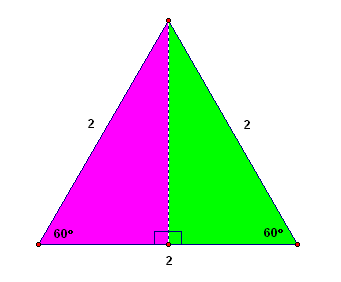

Start with an equiangular (hence equilateral) triangle, where each side has length 2.
Notice that all the angles must be 180°3=60° .
Drop a perpendicular, as shown below.

The purple and green triangles are 30°-60°-90° triangles, and the length of the shortest side is 1 (why?).
A quick application of the Pythagorean Theorem shows that the remaining side has length 3 .
Finally, scale all sides by s to get the following result:

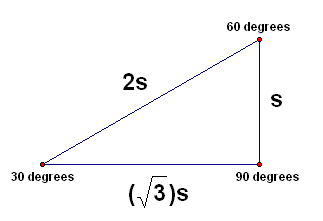

Lengths of Sides in a 30°-60°-90° Triangle

Let s denote the shortest side in a 30°-60°-90° triangle.
Then, the hypotenuse has length 2s ,
and the side opposite the 60° angle has length 3s .

Conversely, if a triangle has sides of lengths s , 3s and 2s ,
then it is a 30°-60°-90° triangle.

Since 3 is about 1.7 , it follows that the side opposite the 60° angle is a little more than one and a half times the shortest side.

The relationships between the sides in a 45°-45°-90° triangle is even easier.

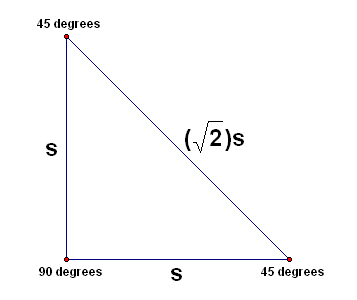

Create a triangle with two sides of length 1 and a 90° angle, as shown below:

a 45-45-90 triangle

Since angles opposite equal sides must be equal, and since the two remaining angles must add to 90° , they must each be 45° .
A quick application of the Pythagorean Theorem shows that the remaining side must equal 2 .

Finally, scale all sides by s to get the following result:

Lengths of Sides in a 45°-45°-90° Triangle

Let s denote the length of the two shorter sides in a 45°-45°-90° triangle.
Then, the hypotenuse has length 2s .

Conversely, if a triangle has sides of lengths s , s , and 2s then it is a 45°-45°-90° triangle.

On this exercise, you will not key in your answer.
However, you can check to see if your answer is correct.
